性能特点/Performance characteristics

※ 平板零件在工作台任意摆放，无需翻转，视觉扫描拍照自动定位零件位置，激光视觉先于割枪对板材边缘进行测量，主动跟踪工件边缘确定精确空间位置，持续引导割枪沿板材边缘运动；解决了常规机器人零件坡口切割中繁琐的人工示教过程和误差的修正，操作简单，效率高。

※ 钢板布均匀，切割台上的支撑栅的磨损和切割过程中板材的变形等隐去的误差的修正。

※ 自动解析提取*.dxf图形文件中的切割信息，生成优化的上下坡口的数控切割轨迹程序。

※ 可扩展常用零件参数化图形库，随时调用，无需另外编程，方便快捷。

※ 双工位或多工位交替工作，缩短准备时间，提高工作效率。

※ 扩展功能：可配通用平板套料软件，进行平板钢板套料切割；实现一机多用。

※ The plate parts are placed arbitrarily on the worktable, no need to flip, visual scanning takes photos to automatically locate the position of the parts, laser vision is measured on the edge of the plate before the cutting gun, the edge of the workpiece is actively tracked to determine the exact space position, and the cutting gun is continuously guided along the edge of the plate; This paper solves the complicated manual teaching process and error correction in the slope cutting of conventional robot parts.
※ Uniform steel sheet cloth, wear of the supporting grille on the cutting table and deformation of the plate during cutting, etc..
※ Automatic resolution extraction *. The cutting information in the DXF graphic file generates an optimized NC cutting trajectory program for the upper and lower slopes.
※ It can expand the parameterized graphics library of common parts and call it at any time. It does not require additional programming and is convenient and fast.
※ Double shift or multiple shift work, shorten preparation time and improve work efficiency.
※ The extension function: can be equipped with the universal plate sleeve software, the plate sleeve cutting; Implement one machine for more than one use.

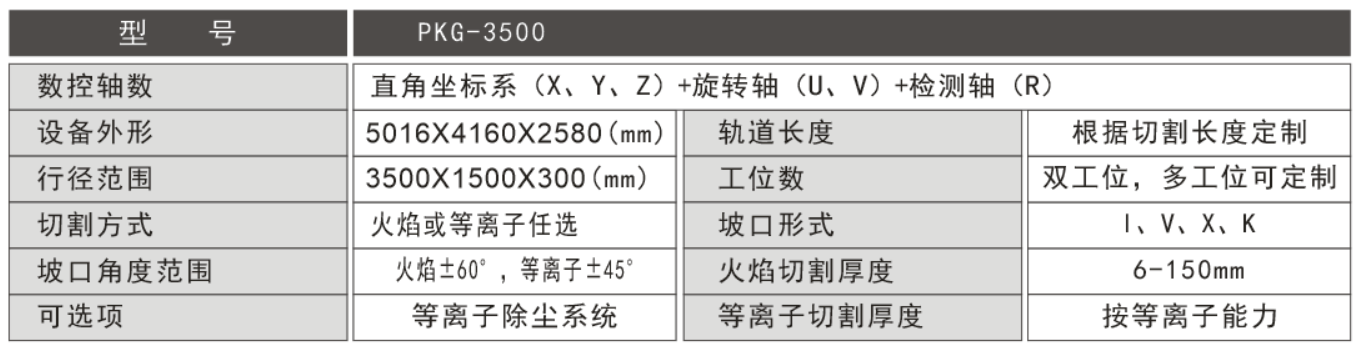

技术参数/Technical parameters
