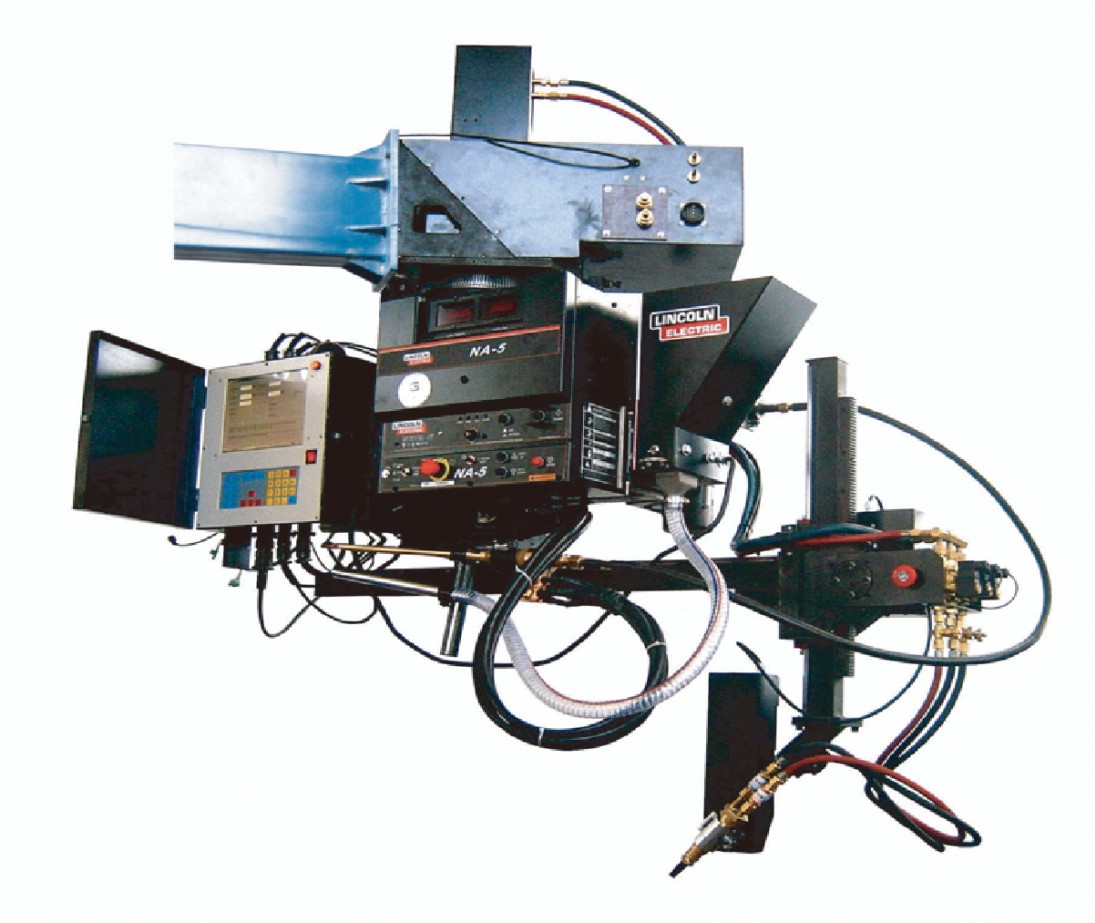

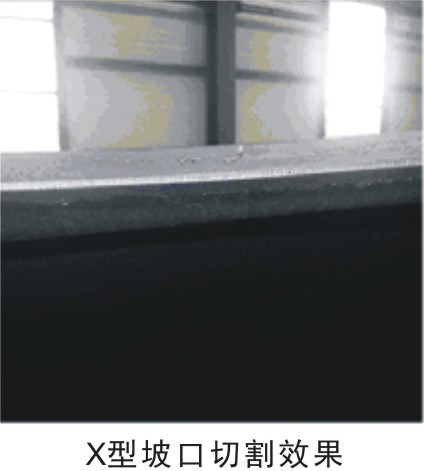

※ This machine is a four axis CNC system, it can implement saddle welding and cutting on curved surface such as barrel , ellipsoidal head plate. The intersecting holes form can be orthogonal, eccentric vertical,etc. Also it can implement flange connecting pipe intersecting line cutting.
※ Online teaching function is able to correct the theoretical intersecting trajectories automatically generated by input parameter.Through this way, the movement errors caused by non-standard workpiece can be removed, meanwhile the quality of precise welding and cutting can be achieved. Through this way, the movement errors caused by non-standard workpiece can be removed, meanwhile the quality of precise welding and cutting can be achieved.
※ In order to make welding work simple and quick, the following functions are involved in saddle welding and cutting machine: parametric input, automated trace alignment, calibrating center with laser and partition setting of welding parameters ,etc.

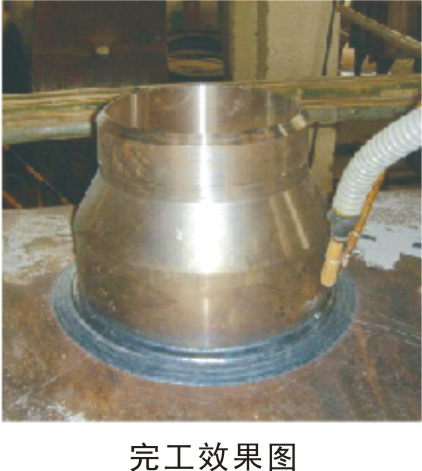

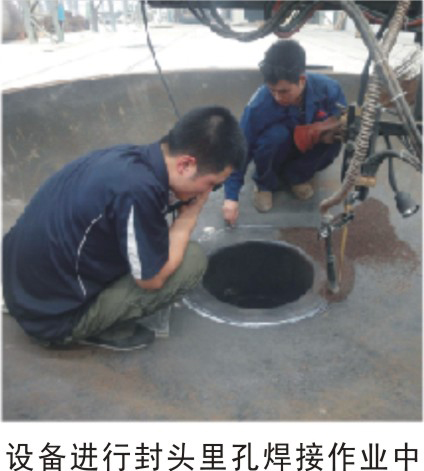

※ With the equipment fixed on the operating machine, the equipment can be safely operated and can calibrate center with laser precisely and fast. The device is not affected by the diameter of the joint pipe limit such that weld can be done at all ranges. Basically, the equipment is pretty effective.

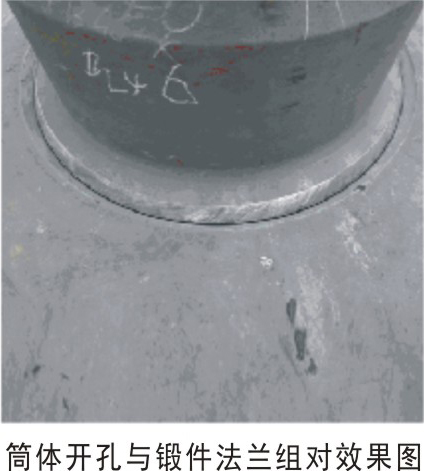

※ As a multifunctional and flexible machine, it is able to make convenient conversion from the function of cutting to welding. In addition, girth weld can be easily implemented with this machine.
※ Two different welding modes are available to be used: submerged arc welding and gas shielded welding.

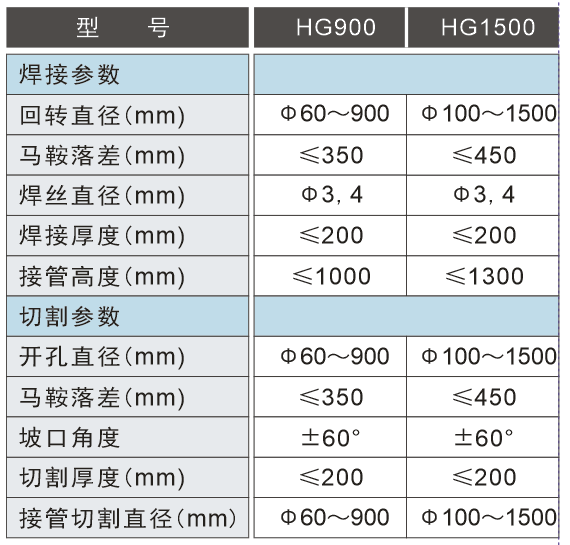

适用范围/Scope of application
For chemical pressure vessels, power station boilers, nuclear power equipment, food pharmaceutical equipment, shipbuilding and marine engineering, and national defense industry, etc., saddle-shaped cutting and welding can be performed on cylindrical shells and ellipsoidal seals.
