※ Self-developed multi-axes numerical control system, in digital AC servo closed loop control mode
※ Automatically input parameter from graphics file, successively cutting more than one holes once
※ Be able to cut orthotropic, eccentric, inclined holes on cylindrical shell and head
※ Online tracing and measure through laser and vision, can track and compensate during incising
※ Can compensate offset of gap, width, ovality, slope angle
※ Can dynamically show progress of incising and welding in animated drawing
适用范围/Scope of application

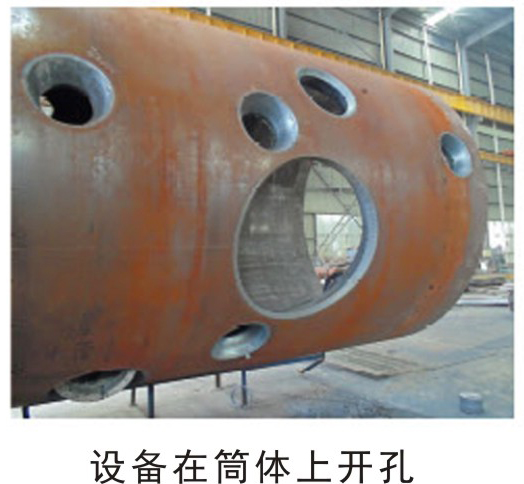

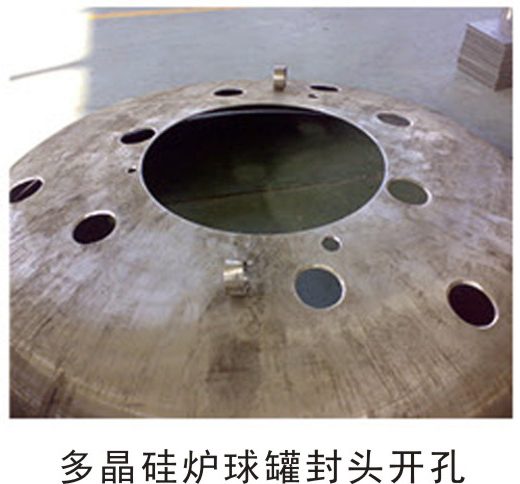

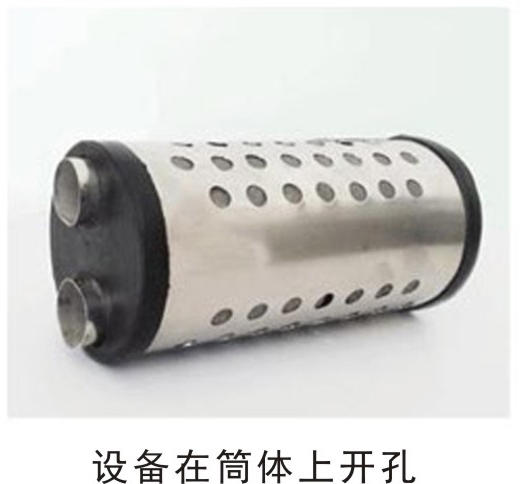

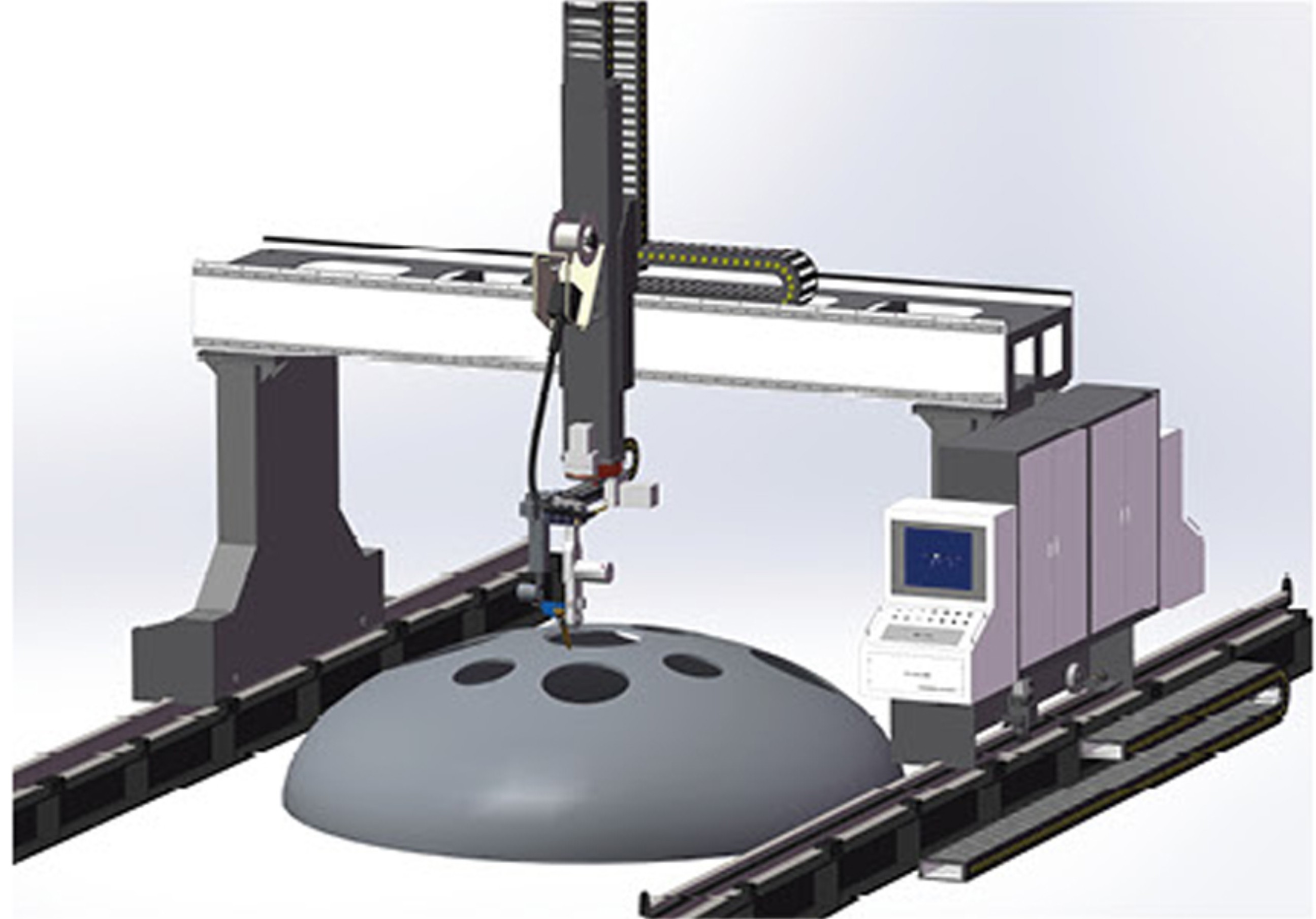

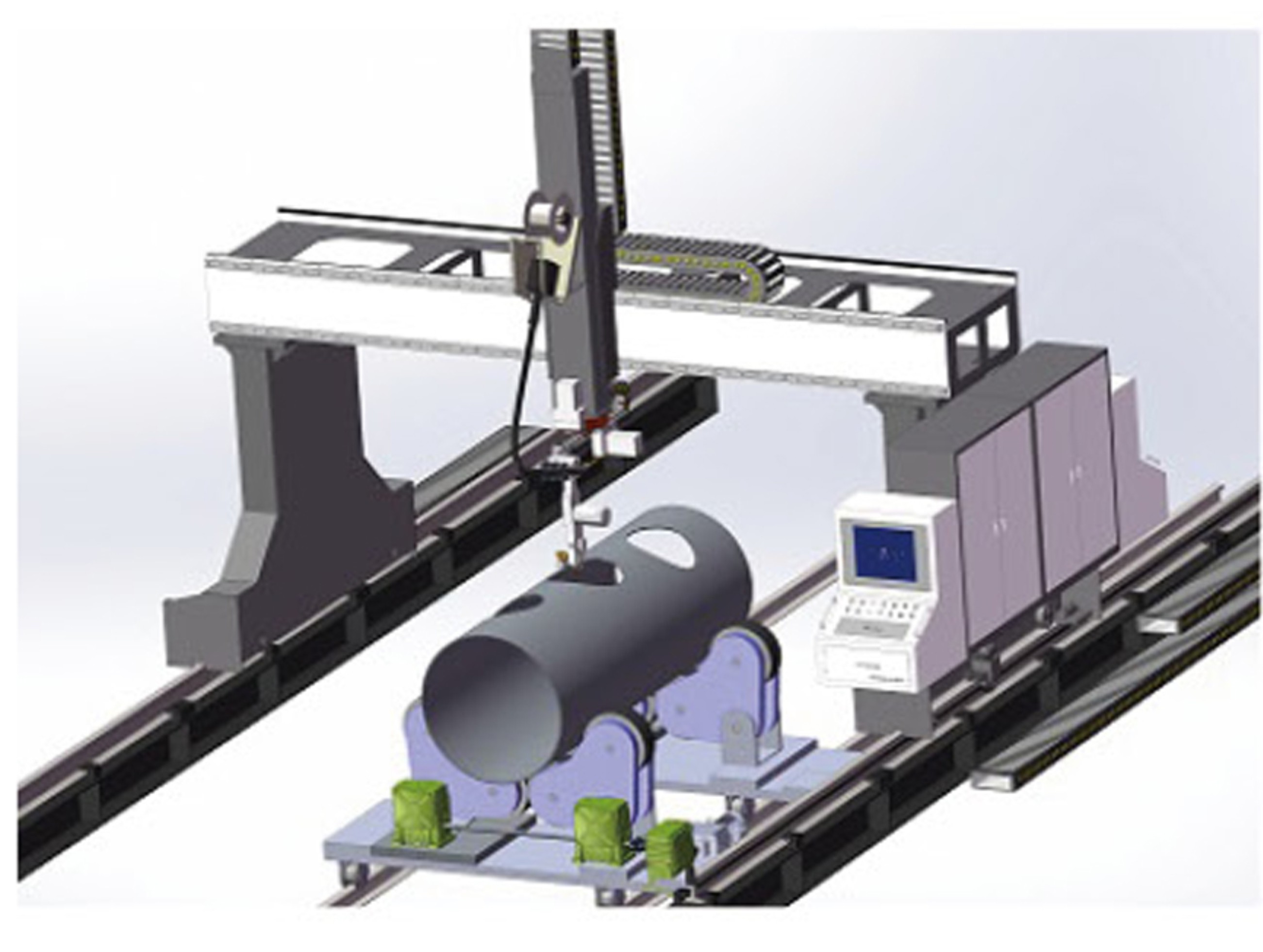

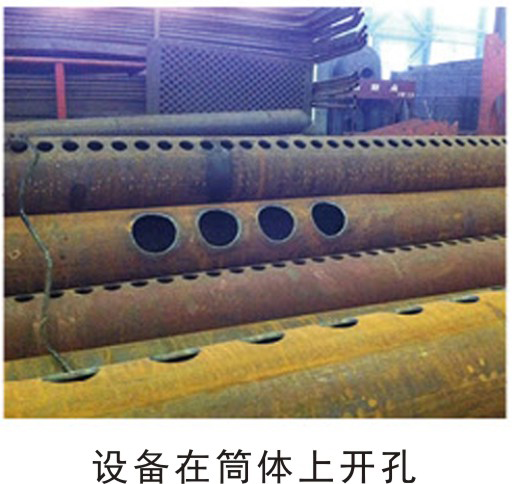

This machine is the cutting equipment of gantry multi-axis visual positioning full automatic cylinder opening and the head opening. It is suitable for the high precision and high efficiency single molding cutting of various cross-line heads and holes on the cylinder body and cover head; It is especially suitable for continuous positioning cutting of porous cylinder and seal head; Can be used in chemical equipment, industrial and civilian boilers, pressure vessels, pharmaceutical equipment manufacturing, marine engineering, shipbuilding and other industries.
